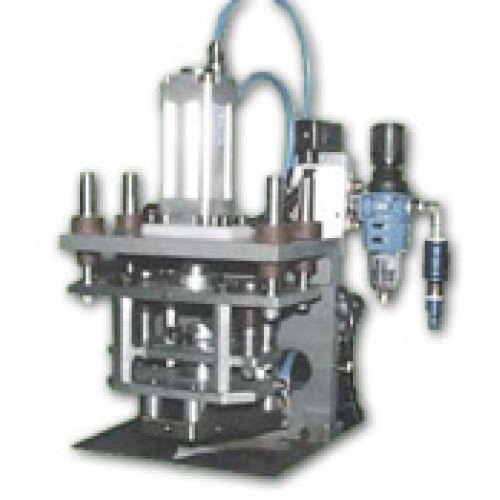

This device has an electric-pneumatic operation system and it is designed to produce rounded-bottom bags (aka Chicken Bags). The device is designed in a sturdy bridge frame with a tool blade that has a 100- mm radius of curvature. It is heated, thermo-regulated and pneumatically driven.

The device is synchronised with the machine and carries out the cutting and welding of the rounded bottom simultaneously. It is complete with electric regulation equipment and a pneumatic system.

A suction system for the scraps produced is supplied with the device, including an electric fan, a sac for scrap collection, a flexible connection pipe, and an electric control board.

Voltage: 230 Volt / 50 Hz (different Voltage upon request).

Delivery: Ex-Works Italy.

Time for Delivery: 6 - 8 Weeks.

Start-Up: Not included, but available upon request.
